Additional Info

• Characteristics:


  TYPE	MOTOR		Q	CAPACITY
  			M3/h	4.8	6	7.5	9	10.5	12	13.5	15	16.5
  	KW	Hp	l/min	80	100	125	150	175	200	225	250	275
  			PRESSURE GAUGE HEIGHT
  AP6 B5 / 4”	2.2	3		70	67	63	58	53	46	37	27	16
  AP6 B6 / 4”	3	4		83	80	76	70	63	55	44	32	19
  AP6 B7 / 4”	3	4		97	94	89	82	74	64	52	38	22
  AP6 B8 / 4”	3.7	5		111	107	101	93	84	73	59	43	25
  AP6 B9 / 6“	4	5.5		125	121	114	105	95	82	67	48	28
  AP6 B12 / 6“	5.5	7.5		167	161	152	140	127	109	89	65	37
  AP6 B16 / 6“	7.5	10		222	214	202	187	169	146	118	86	50
  AP6 B18 / 6“	9.2	12.5		250	241	228	210	190	164	133	97	56
  AP6 B21 / 6“	9.2	12.5		292	281	266	245	222	192	155	113	65
  AP6 B24 / 6“	11	15		334	322	304	280	253	219	178	129	74
  AP6 B28 / 6“	13	17.5		389	375	354	327	295	255	207	151	87
  AP6 B32SD / 6“	15	20		445	429	405	374	338	292	237	172	99
  AP6 B40SD / 6“	18.5	25		556	536	506	467	422	365	296	215	124
  AP6 B48SD / 6“	22	30		667	643	607	561	506	438	355	258	149
  AP6 B54SD / 6“	26	35		751	724	683	631	570	492	400	291	167

• Dimensions:


  DIMENSIONS
  	PUMPS		MOTORS
  TYPE	kg	HEIGHT	Hp	kg	HEIGHT
  AP6 B5 / 4”	9.8	478	3	16,5	563
  AP6 B6 / 4”	10.4	516	4	18,5	623
  AP6 B7 / 4”	11.1	554	4	18.5	623
  AP6 B8 / 4”	11.8	592	5	22.5	703
  AP6 B9 / 6“	12.4	630	5.5	42	581.2
  AP6 B12 / 6“	14.4	744	7.5	48	772
  AP6 B16 / 6“	16.9	895	10	50	792
  AP6 B18 / 6“	18.3	972	12.5	53	822
  AP6 B21 / 6“	22.2	1086	12.5	53	822
  AP6 B24 / 6“	24.2	1200	15	56	852
  AP6 B28 / 6“	27.7	1404	17.5	61	902
  AP6 B32SD / 6“	41.0	1693	20	66	947
  AP6 B40SD / 6“	47.5	1997	25	70	992
  AP6 B48SD / 6“	54.1	2301	30	79	1082
  AP6 B54SD / 6“	59.0	2529	35	90	1187

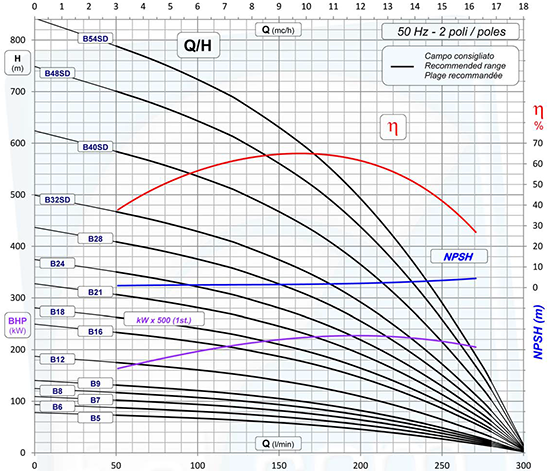

• Chart:
