Additional Info

• Advantages:



  • Hermetically sealed stator, anti track, self healing stator resin prevents motor burn out

  • Removable “Water Bloc” lead connector

  • Cable material according to drinking water regulations (KTW approved)

  • Sand slinger and Mechanical seal for high performance in sand

  • High efficiency electrical design for low operation cost

  • All motors prefilled and 100% tested

  • Max. storage temperature -15°C - + 60°C

  • Non contaminating FES91 -filling

• Technical specifications:

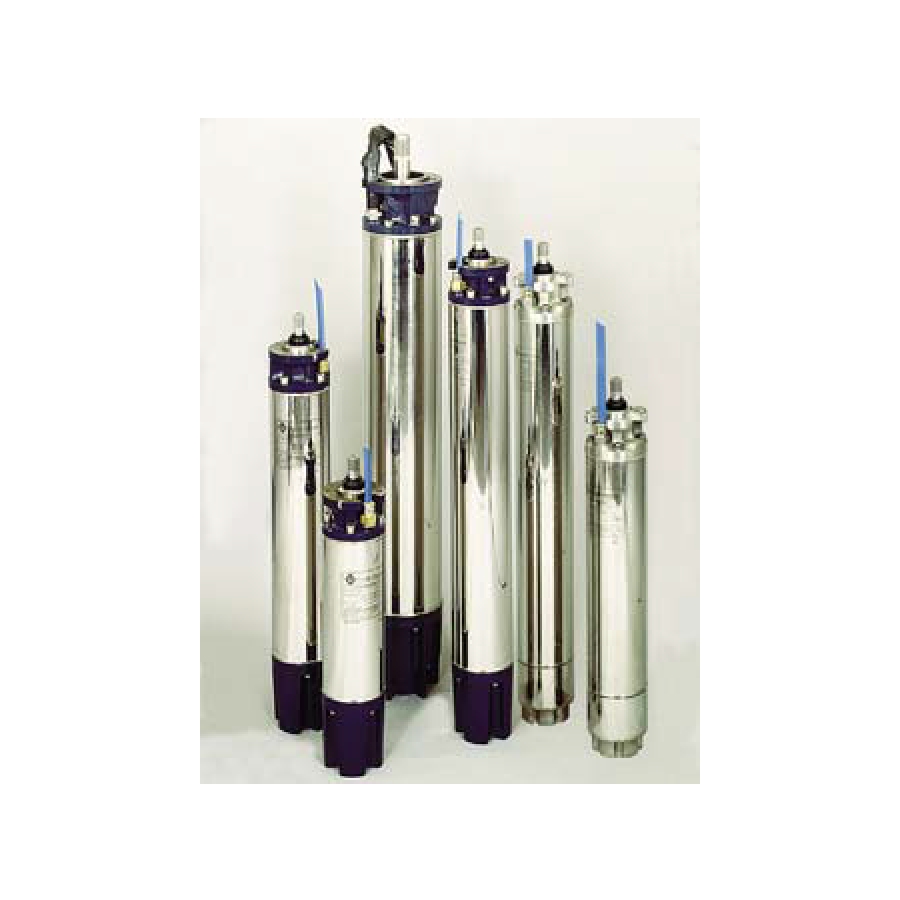

  Standard Motor

  • 30 ... 150 kW

  • 8" NEMA flange• Protection: IP 68

  • Starts per hour: 10

  • Installation: vertical/horizontal

  • Standard Voltage: 380-415V/50Hz, 460V/60Hz

  • Voltage tolerance 50Hz: -10% / +6% UN [380-415V = (380-10%) – (415+6%)]

  • Voltage tolerance 60Hz: ±10%UN

  • Motor protection: Select thermal overloads according to DIN 61947-4-1

  • Insulation:  Class F

  • DOL / YΔ - start (pos. of cables 90°)

  • Rated ambient temperature:  30°C

  • Cooling flow:  min. 0,16 m/s

  • Built-in Subtrol Heat Sensor

  • Motor lead in 8 m length (KTW approved)

• Options:



  • Other voltages

  • Motors complete in 316 SS

  • PT 100 temperature sensor (sold separately)

  • „Sand fighter®“ Motor with SiC- Mechanical seal
