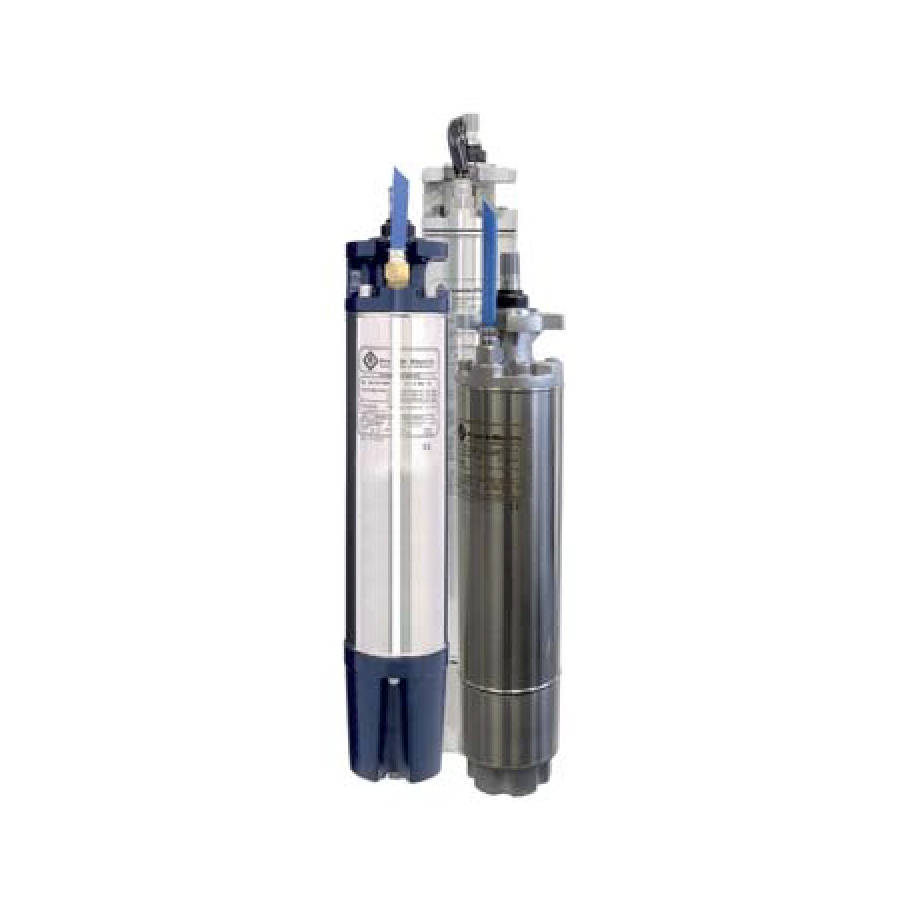

6" Encapsulated Motors

Rate this item
(0 votes)

Submersible Motors

Quality in the Well

These 6" encapsulated motors, manufactured in ISO 9001 certified facilities, are built for dependable operation in 6" diameter or larger water wells. Water lubricated thrust and radial bearings enable a maintenance free operation.  A special diaphragm ensures pressure compensation inside the motor. The motor is filled with a special FES91 fluid, providing frost protection down to -15ºC storage temperature. The Sand fighter® SiC seal system is standard.



Additional Info

  • Advantages:



    • Hermetically sealed stator, anti track, self healing stator resin prevents motor burn out

    • 37 and 45kW up to 50°C ambient temperature• Removable “Water Bloc” lead connector

    • Cable material according to drinking water regulations (KTW approved)

    • „Sand fighter®“ Motor with SiC-Mechanical Seal

    • High efficiency electrical design for low operation cost

    • All motors prefilled and 100% tested

    • Max. storage temperature -15°C - + 60°C

    • Non contaminating FES91 -filling

    • 45kN High Thrust Version on request (standard in 37kW and 45kW motors)

  • Technical specifications:



    Standard Motor

    • 4 ... 45 kW

    • 6" NEMA flange

    • Protection: IP 68

    • Starts per hour: 20

    • Installation: vertical/horizontal

    • Standard Voltage: 380-415V/50Hz, 460V/60Hz

    • Voltage tolerance 50Hz: -10% / +6% UN [380-415V = (380-10%) – (415+6%)]

    • Voltage tolerance 60Hz: ±10%UN

    • Motor protection: Select thermal overloads according to DIN 61947-4-1

    • Insulation:  Class F

    • YΔ - start (pos. of cables 90°)

    • „Sand fighter®“ Motor with SiC-Mechanical Seal

    • Rated ambient temperature:  4- 30kW up to 30°C;   37 & 45 kW up to 50°C

    • Cooling flow:  min. 0,16 m/s

    • Motor lead in 4m length (KTW approved)

  • Options:



    • Other voltages

    • 45kN High Thrust Version on request (standard in 37kW and 45kW motors)

    • Motors complete in 304SS and 316 SS

    • PT 100 temperature sensor (sold separately)

    • Special Lead lengths up to 50m

    • Built-in PTC temperature sensor

    • Built-in SubMonitor Transmitter (standard for 37&45kW)
